Embedding Plot

Source: R/vizier.R
embed_plot.Rd

Plots the embedded coordinates, with each point colored by a specified color.

Usage

embed_plot(
  coords,
  x = NULL,
  colors = NULL,
  color_scheme = NULL,
  num_colors = 15,
  alpha_scale = 1,
  limits = NULL,
  top = NULL,
  cex = 1,
  title = NULL,
  text = NULL,
  sub = NULL,
  equal_axes = FALSE,
  pc_axes = FALSE,
  xlim = NULL,
  ylim = NULL,
  show_axes = TRUE,
  NA_color = NULL,
  rev = FALSE,
  verbose = FALSE
)

Arguments

coords

Matrix of embedded coordinates, with as many rows as observations, and 2 columns.

x

Either a data frame or a column that can be used to derive a suitable vector of colors. Ignored if colors is provided.

colors

A single color or one color per observation.

color_scheme

A color scheme. See Details. Ignored if colors is specified.

num_colors

Number of distinct colors to use in the palette, when x is a numeric vector, on the assumption that the palette is continuous (which it probably should be). Ignored if x is not a numeric vector. If set to NULL, it will be set to length(x).

alpha_scale

Scale the opacity alpha of the colors, between 0 and 1. Useful for increasing the transparency of points, especially with large plots with lots of overlap.

limits

The range that the colors should map over when mapping from a numeric vector. If not specified, then the range of x. This is useful if there is some external absolute scale that should be used. Ignored if x is not a numeric vector.

top

If not NULL, only this many finite values from a directly supplied numeric x are displayed. Values are selected in decreasing order with existing row order breaking ties.

cex

Size of the points. Ignored if text is provided.

title

Title for the plot.

text

Vector of label text to display instead of a point. If the labels are long or the data set is large, this is unlikely to be very legible, but is occasionally useful.

sub

Subtitle for the plot. Appears below the title.

equal_axes

If TRUE, use a common coordinate range and equal physical units on the X and Y axes.

pc_axes

If TRUE, the coords are replaced by the first two (unscaled) principal components, which should have the effect of rotating the data (with a potential reflection) so the main variance aligns along the X-axis. Should not have any other scaling effect.

xlim

Vector of two numeric values to give the numeric extent of the X-axis after any PCA rotation. Ignored if equal_axes = TRUE.

ylim

Vector of two numeric values to give the numeric extent of the Y-axis after any PCA rotation. Ignored if equal_axes = TRUE.

show_axes

If TRUE, the axes, axis labels (and frame) are displayed.

NA_color

Color to use for NA values, which can arise if using a factor column for x (or if any item in colors is NA). By default, these points won't be displayed.

rev

Logical indicating whether generated palettes or continuous scales should be reversed. Explicit colors are unchanged.

verbose

If TRUE, log messages to the console, mainly when searching for a suitable color column in a dataframe.

Details

The x argument can be used to provide a suitable vector of colors from either a data frame or vector.

If a data frame is provided, then a vector of colors will be looked for. If it's present, it will be used as the colors argument directly. Otherwise, a factor column will be looked for, and each level will be mapped to a different color. Otherwise, one color will be used for each point. If more than one column of a type is found in the data frame, the last one encountered is used.

If a vector is provided, a similar procedure to the data frame is used when mapping from its content to a vector of colors. Additionally, a numeric vector can be provided, which will be linearly mapped to a color scheme.

The color_scheme parameter can be one of:

  • A palette function that takes an integer n and returns a vector of colors, e.g. grDevices::rainbow(). For some other applicable functions, see the Palettes help page in the grDevices package (e.g. by running the ?rainbow command).

  • A vector of colors making up a custom palette of your own devising, e.g. c("red", "green", "blue"). There must be at least two colors in the list.

  • The name of a color scheme provided by the paletteer package, in the form "package::palette". Some examples include "dutchmasters::milkmaid", "cartography::green.pal", "viridis::inferno" and "RColorBrewer::Dark2". If more colors are required than supported by the color scheme, interpolation will be used to create the required number of colors.

  • The name of a pre-defined R palette, if you are running R 4.0 or later. Some examples include "Okabe-Ito", "Tableau 10" and "Alphabet". See grDevices::palette.pals() for the list of possible names. Note that this function is not available prior to R 4.0. For more details, see https://developer.r-project.org/Blog/public/2019/11/21/a-new-palette-for-r/index.html.

Numeric vectors use a sequential HCL Viridis palette by default. Factor and directly supplied character vectors use the built-in "Polychrome 36" palette in stable order when available, and an HCL Dynamic palette otherwise. If x is omitted, the same categorical palette rule assigns one color per row. Data-frame character columns remain eligible only when they are conservatively factor-like, so identifier columns are not inferred as categories.

A fully named color_scheme vector maps observed category values by name; extra entries are ignored and missing entries are an error. rev = TRUE reverses generated palettes or continuous scales before mapping them to rows, but does not reorder explicit per-observation colors.

If you just want one color for all points, then you can pass a single color to the colors argument, e.g. colors = "blue".

Examples

# Embed with PCA
pca_iris <- stats::prcomp(iris[, -5], retx = TRUE, rank. = 2)

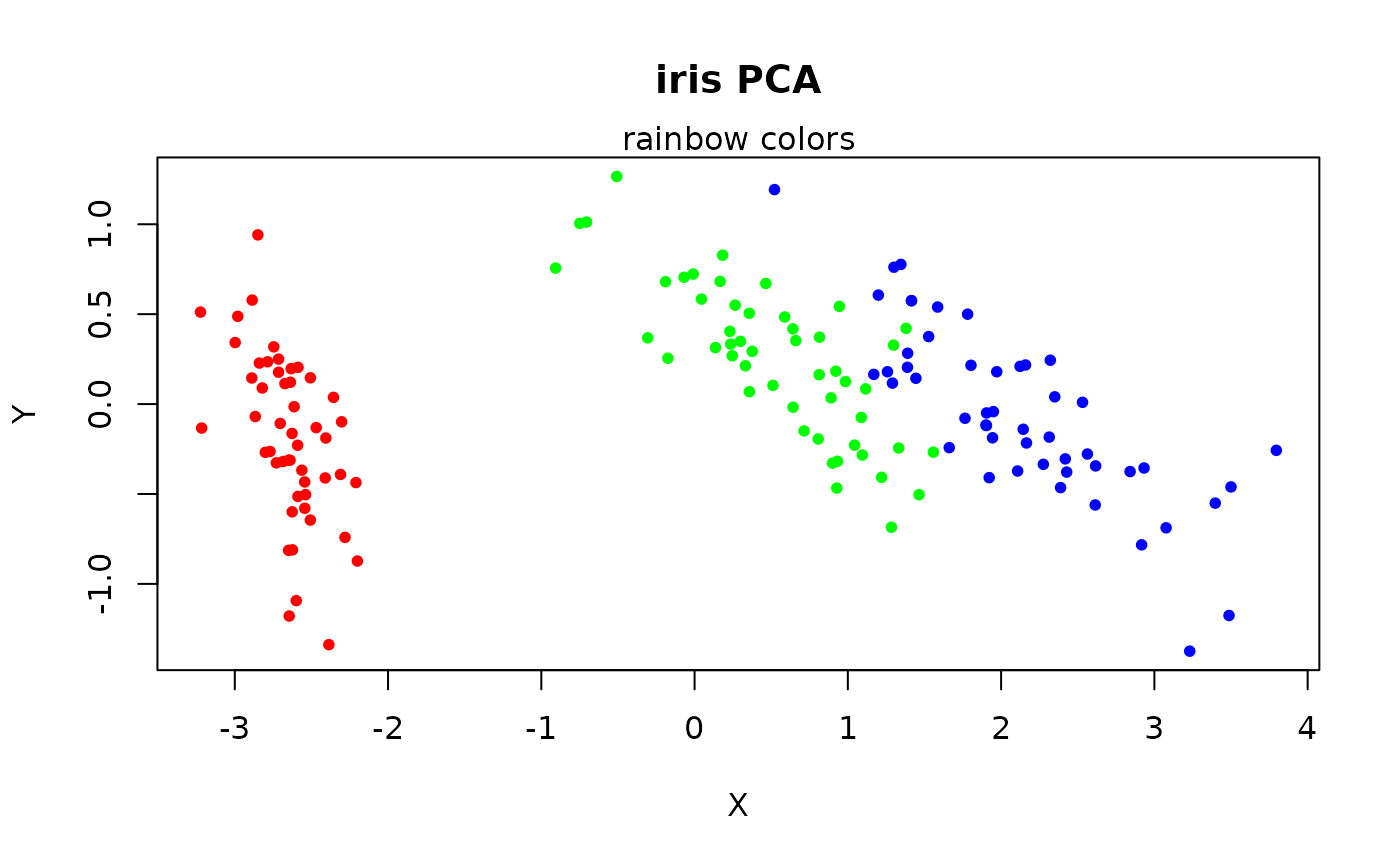

# Visualize the resulting embedding, colored by iris species, using the
# rainbow color scheme
embed_plot(pca_iris$x, iris$Species,
  color_scheme = rainbow,
  title = "iris PCA", sub = "rainbow colors"
)

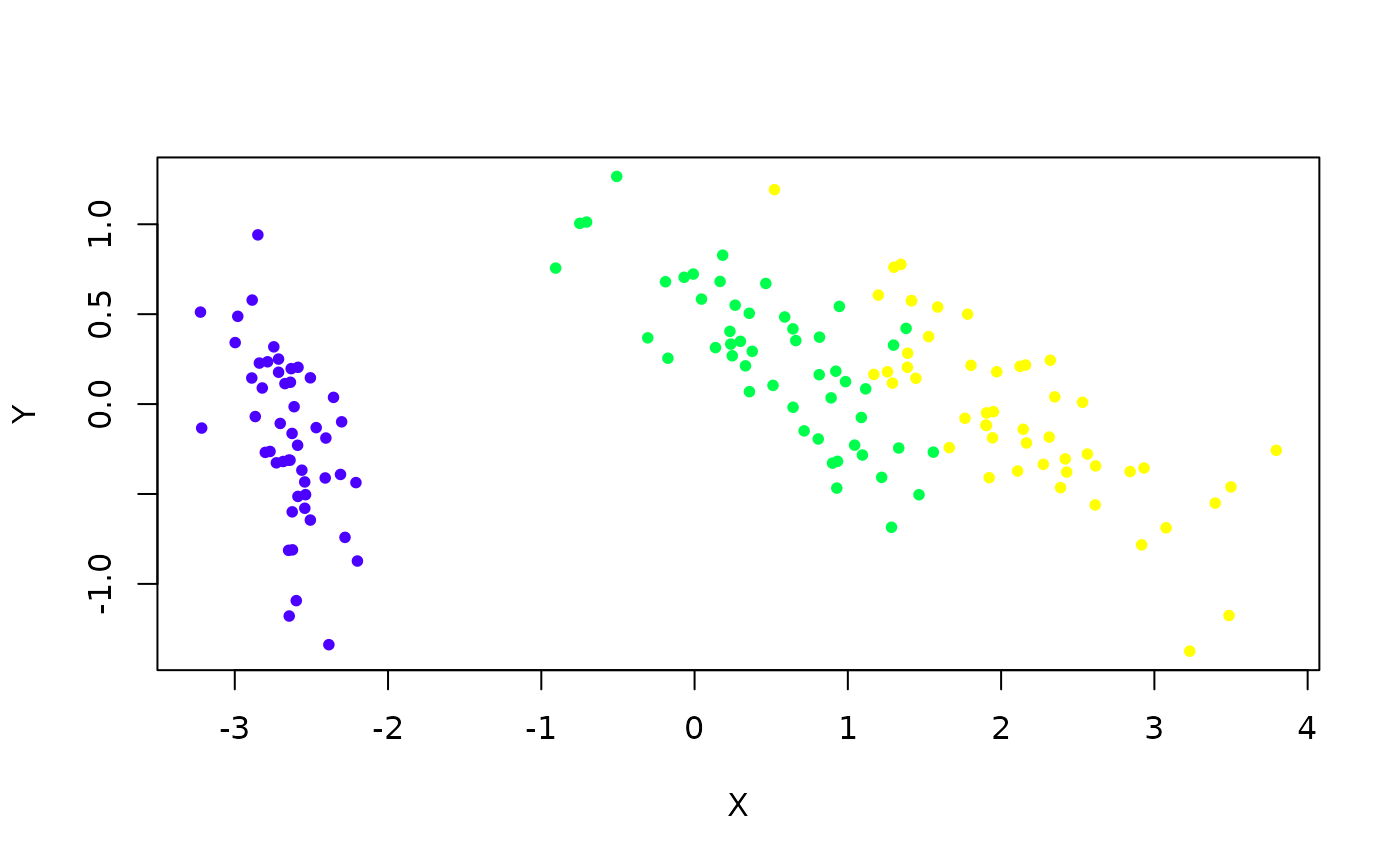

# topo.colors scheme
embed_plot(pca_iris$x, iris$Species, color_scheme = topo.colors)

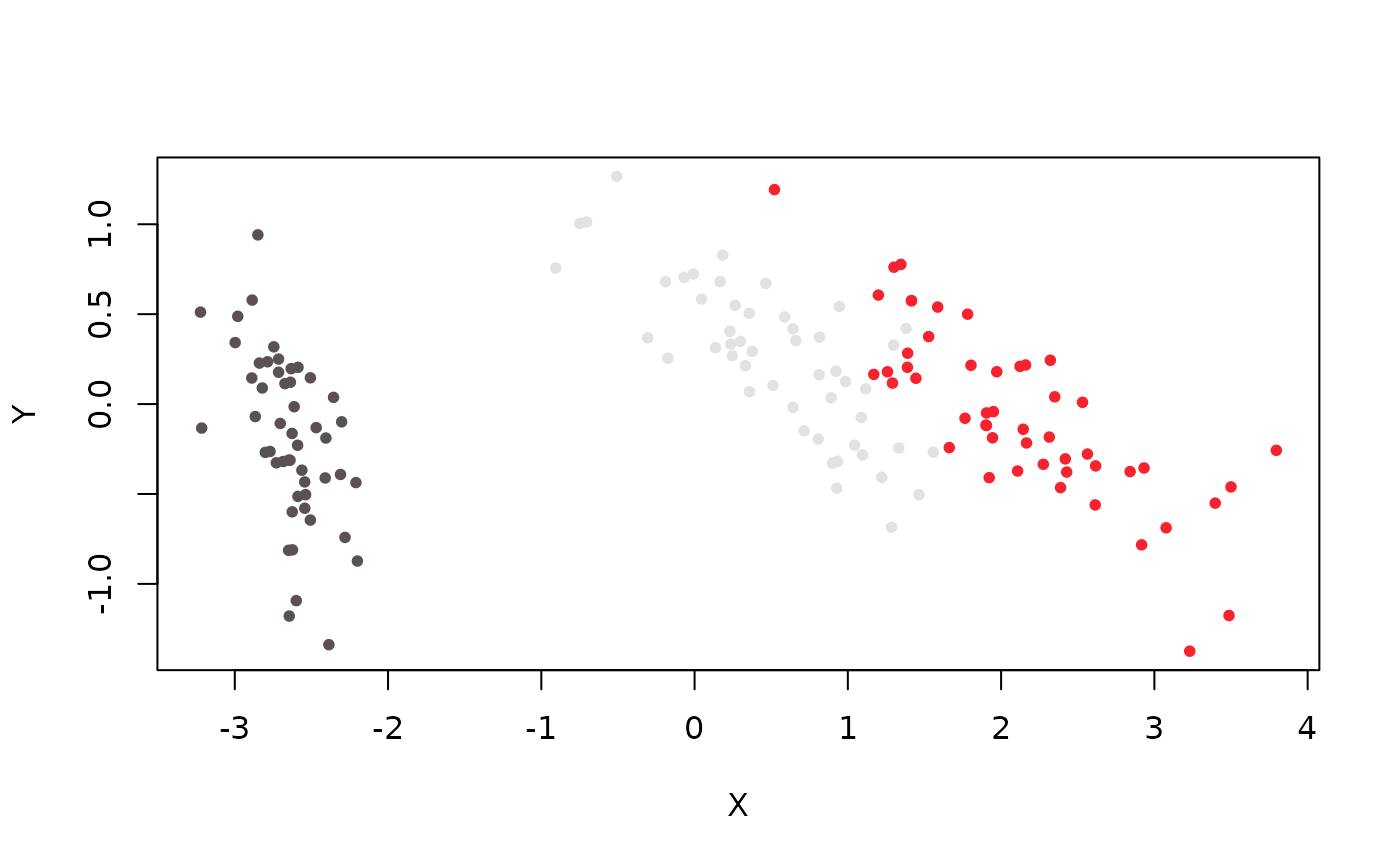

# Pass in data frame and it will use the last (in this case, only) factor
# column it finds
embed_plot(pca_iris$x, iris)

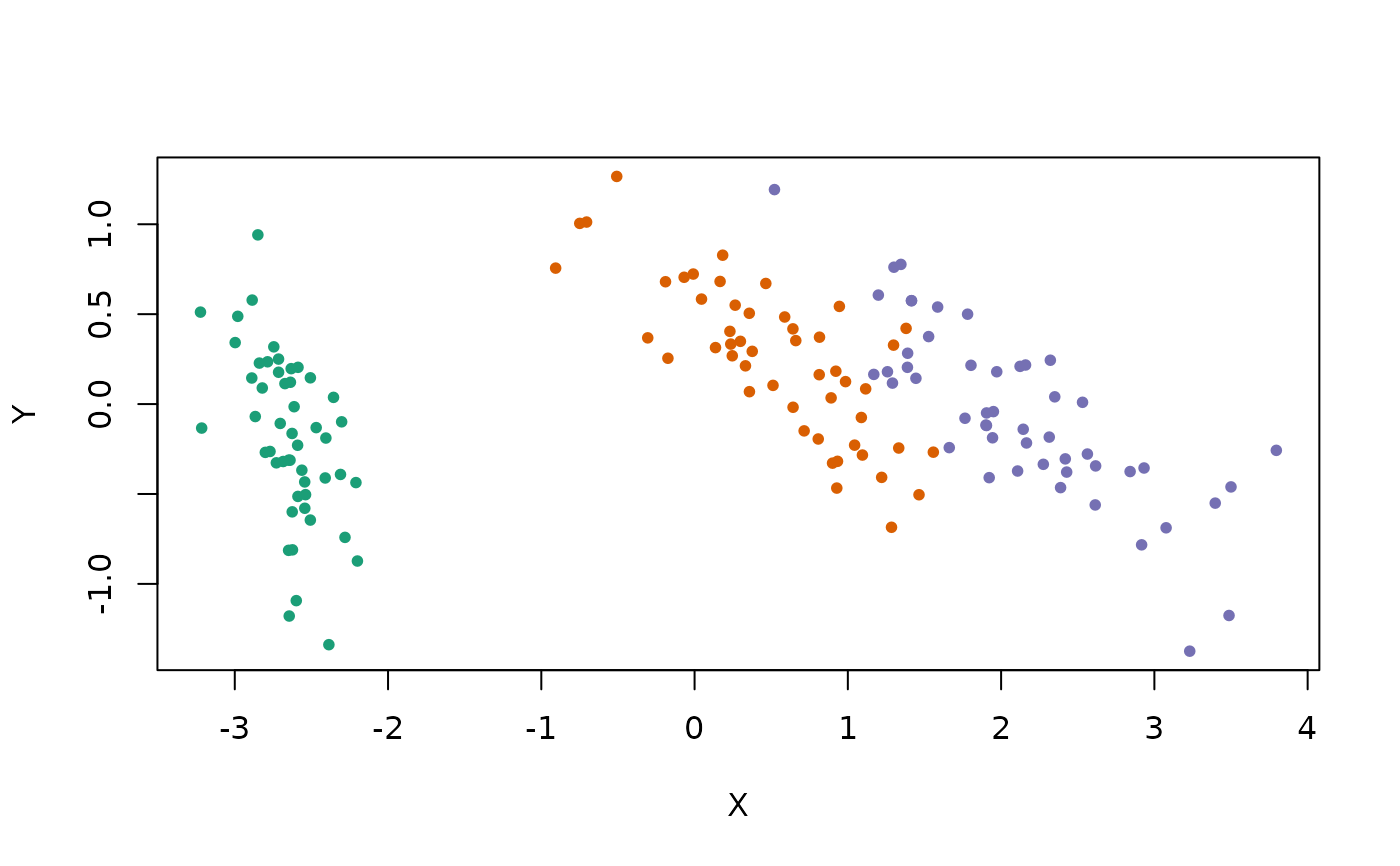

# Use the "Dark2" RColorBrewer scheme
embed_plot(pca_iris$x, iris, color_scheme = "RColorBrewer::Dark2")

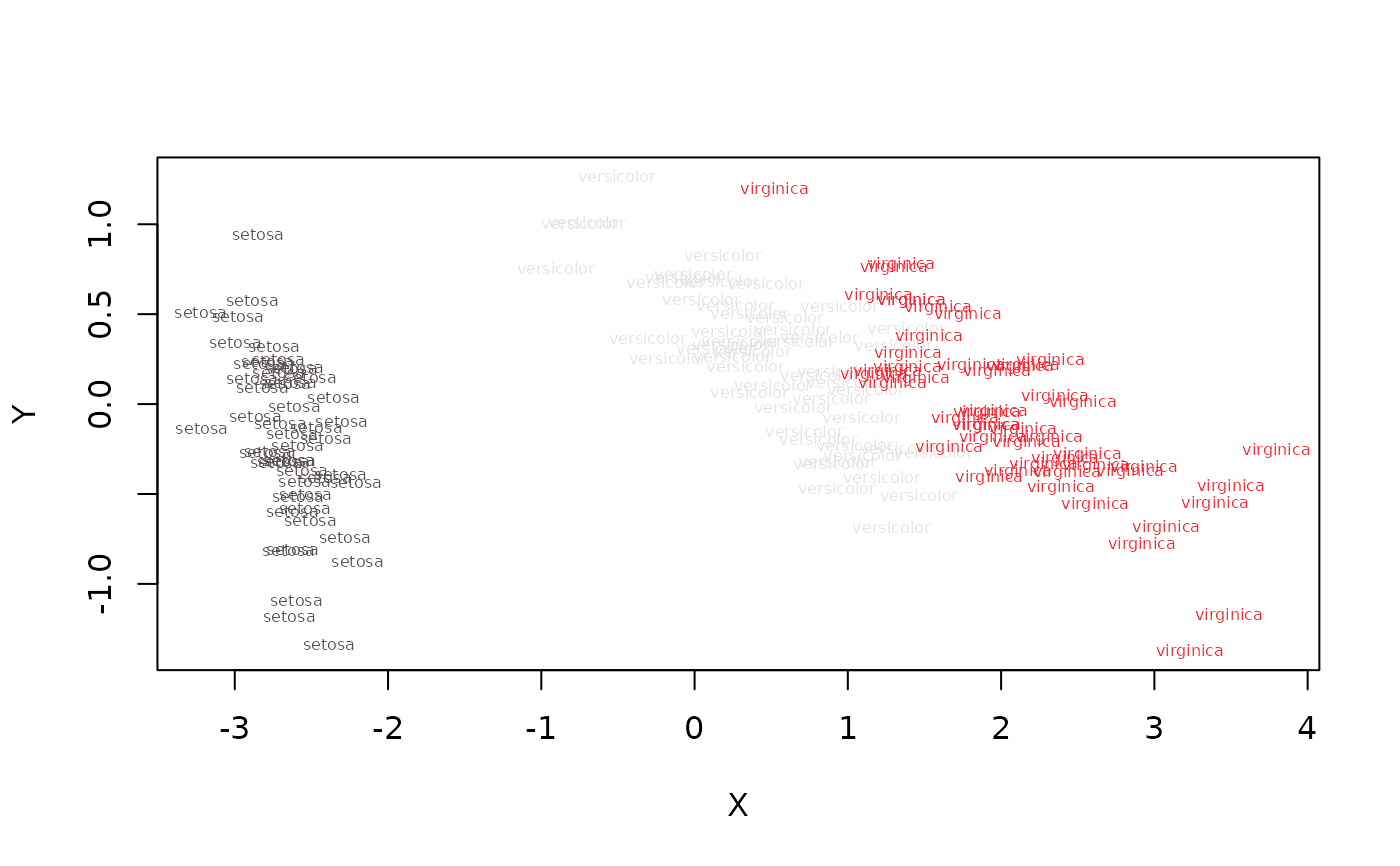

# Can plot the category names instead of points, but looks bad if they're
# long (or the dataset is large)
embed_plot(pca_iris$x, iris$Species, cex = 0.5, text = iris$Species)

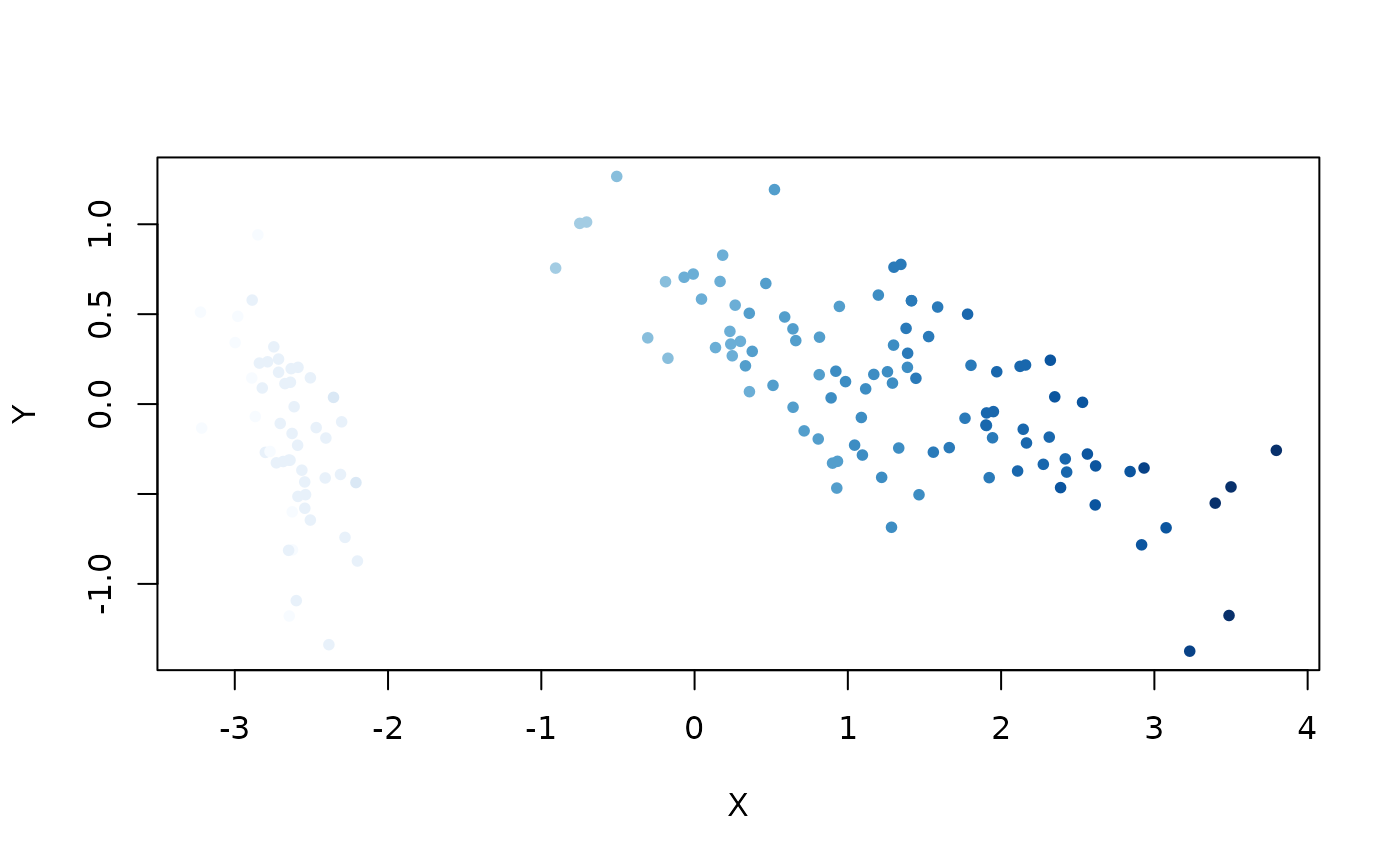

# Visualize numeric value (petal length) as a color
embed_plot(pca_iris$x, iris$Petal.Length, color_scheme = "RColorBrewer::Blues")

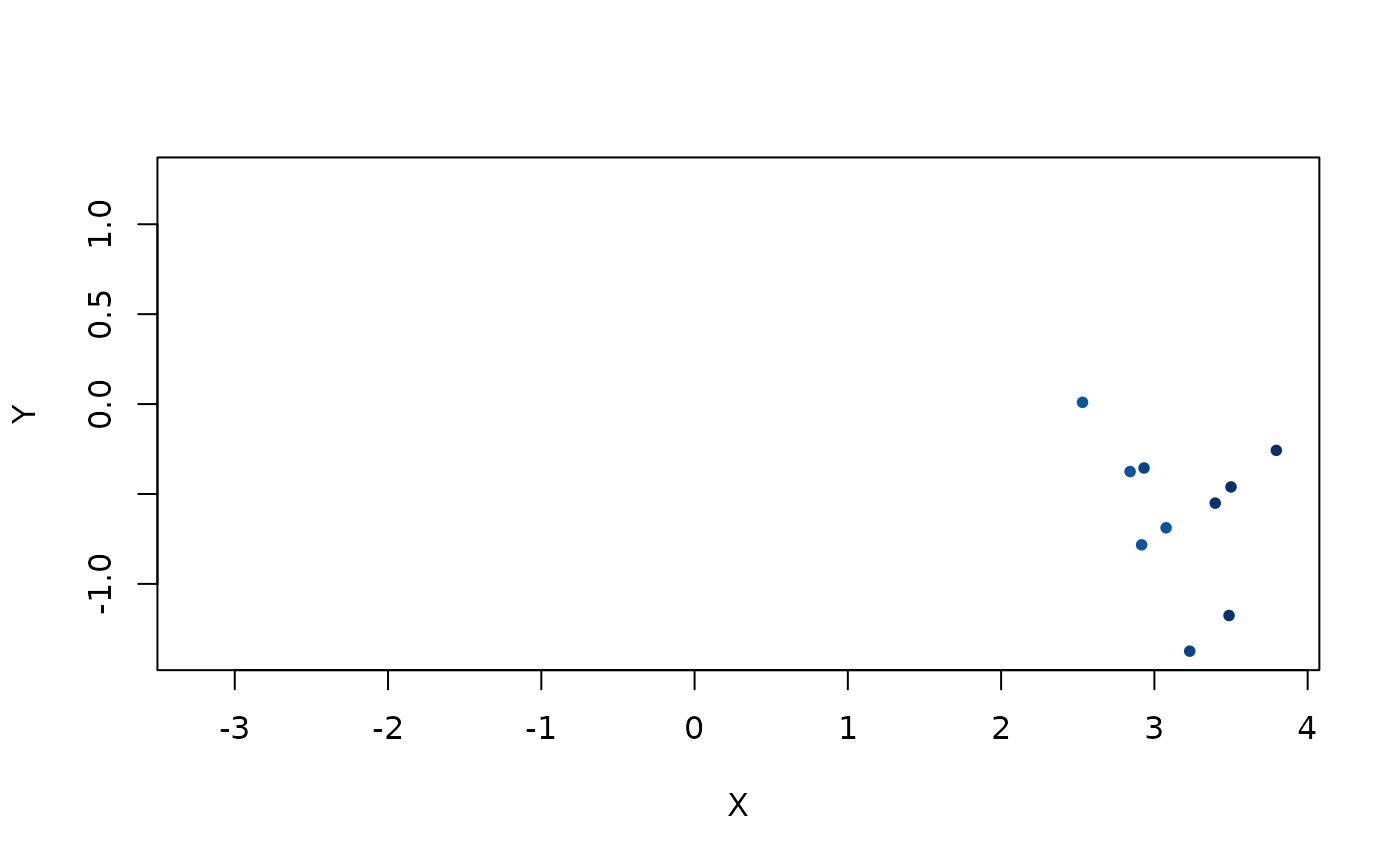

# Just show the points with the 10 longest petals
embed_plot(pca_iris$x, iris$Petal.Length, color_scheme = "RColorBrewer::Blues", top = 10)

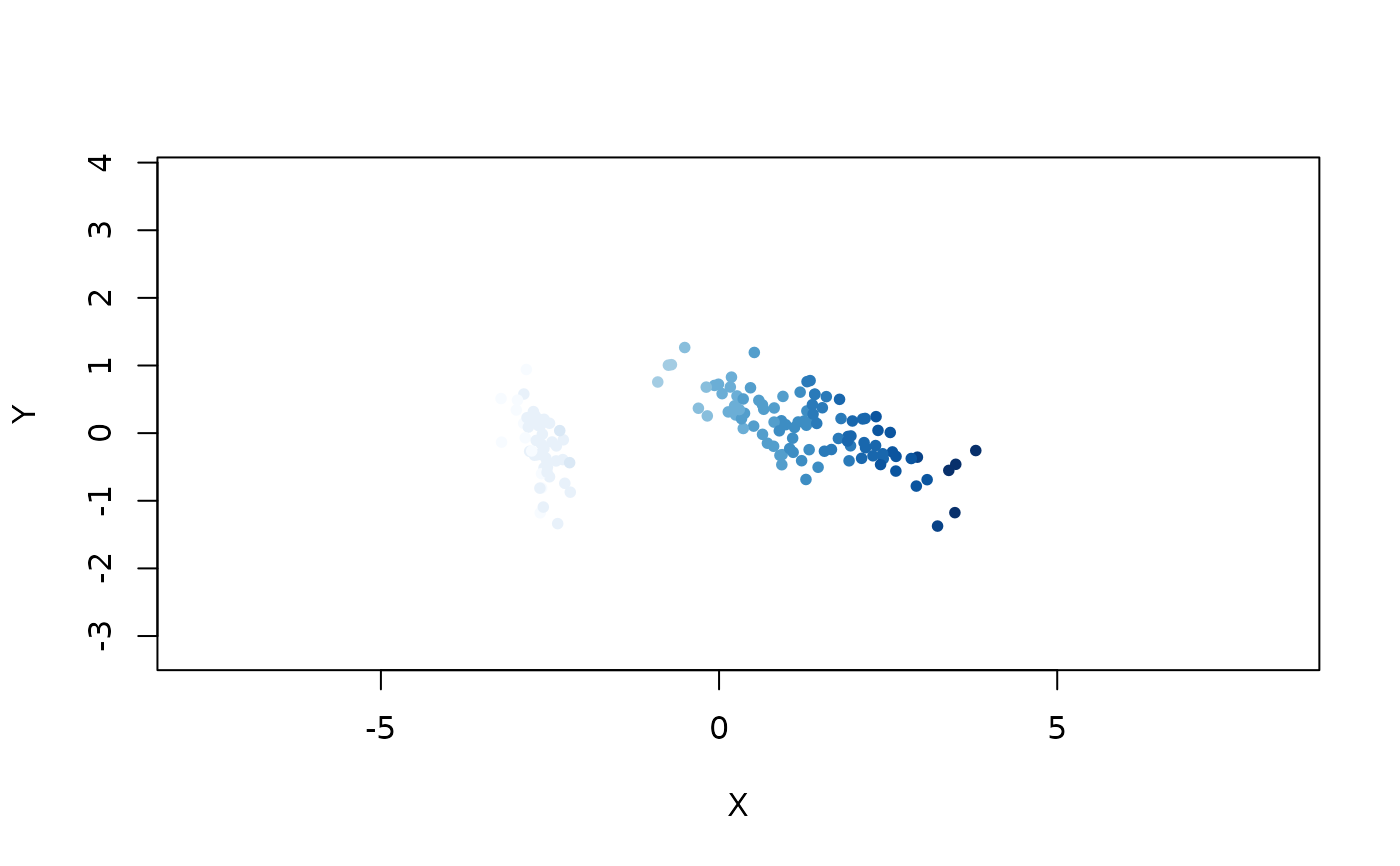

# Can force axes to be equal size to stop clusters being distorted in one
# direction
embed_plot(pca_iris$x, iris$Petal.Length,
  color_scheme = "RColorBrewer::Blues",
  equal_axes = TRUE
)
